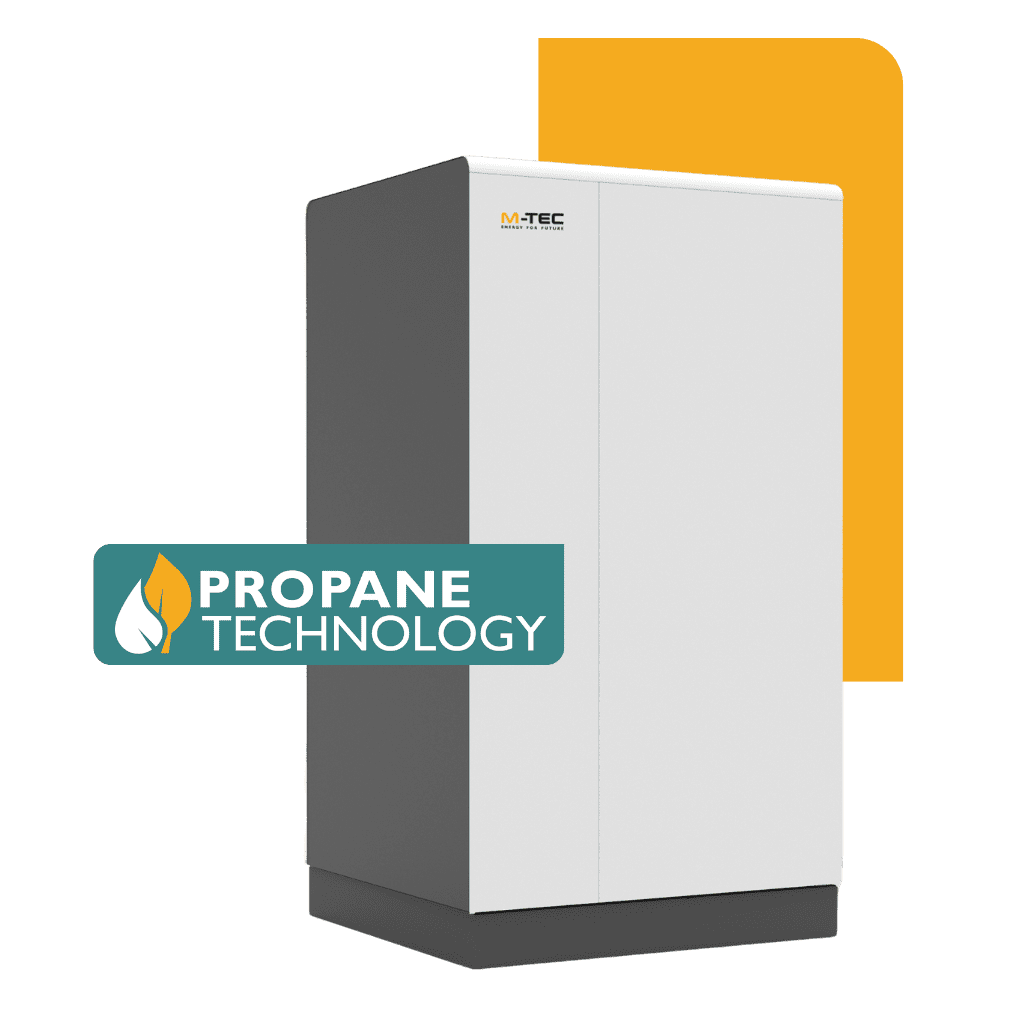

Geothermal heat pump propane
Combines maximum efficiency with minimal space requirements and quiet operation
Heat pump 4-22 kW for outdoor installation
-
Top energy efficiency ratings
of up to SCOP 6.2 - High flow temperatures of up to 75 °C
- No plant room required
- Minimal noise emissions
Flexibly scalable
The heat pump can be cascaded
up to 12 times.
Diversely positioned
Intelligent source management
for PVT systems
Innovative control
For optimal use of photovoltaic electricity and low energy costs
Efficient, flexible and quiet: the heat pump for every environment
High flow temperatures
with a flow temperature of up to 75°C, the heat pump is versatile and can also be used for renovating old buildings.
Space-saving outdoor installation
the heat pump can be installed completely outside and, thanks to its compact design, blends harmoniously into any environment.
Adaptability
modulating, stepless operation flexibly adjusts to the energy demand and guarantees constant power at maximum efficiency.
Quiet in operation
thanks to minimal noise emissions, it is ideal for use in residential areas or densely populated areas.
Cooling included
optionally with passive cooling function and integrated active cooling – for comfort in the warmer months.
Technical data geothermal
| Model | BHPA412 | BHPA618 |
|---|---|---|
| PERFORMANCE | ||
| Performance range kW | 3 - 12 | 5 - 17 |
| Energy class | A+++ | A+++ |
| Dimensions mm (H x L x W) | 1.205 x 662 x 626 | |
| SCOP according to EN 14825 | 5,2 (35°C)* | 5,3 (35°C)* |
Technical data geothermal direct evaporation
| Model | DHPA412 | DHPA618 |
|---|---|---|
| PERFORMANCE | ||
| Performance range kW | 3 - 12 | 5 - 18 |
| Energy class | A+++ | A+++ |
| Dimensions mm (H x L x W) | 1.205 x 662 x 626 | |
| SCOP according to EN14825 | 6,1 (35°C)* | 6,2 (35°C)* |
Technical data groundwater
| Model | WHPA412 | WHPA618 |
|---|---|---|
| PERFORMANCE | ||
| Performance range kW | 4 - 14 | 6 - 22 |
| Energy class | A+++ | A+++ |
| Dimensions mm (H x L x W) | 1.205 x 662 x 626 | |
| SCOP according to EN14825 | 7,0 (35°C)* | 7,1 (35°C)* |
Heating and cooling possible
Operated via smartphone
